Arcair
3/8 x 18 SEA-DRAGON Cutting Electrode (3/8 x 18) Exothermic, CTN-50 PCS
 Arcair® comes out on top

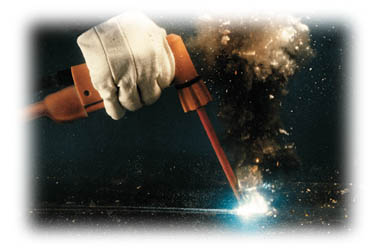

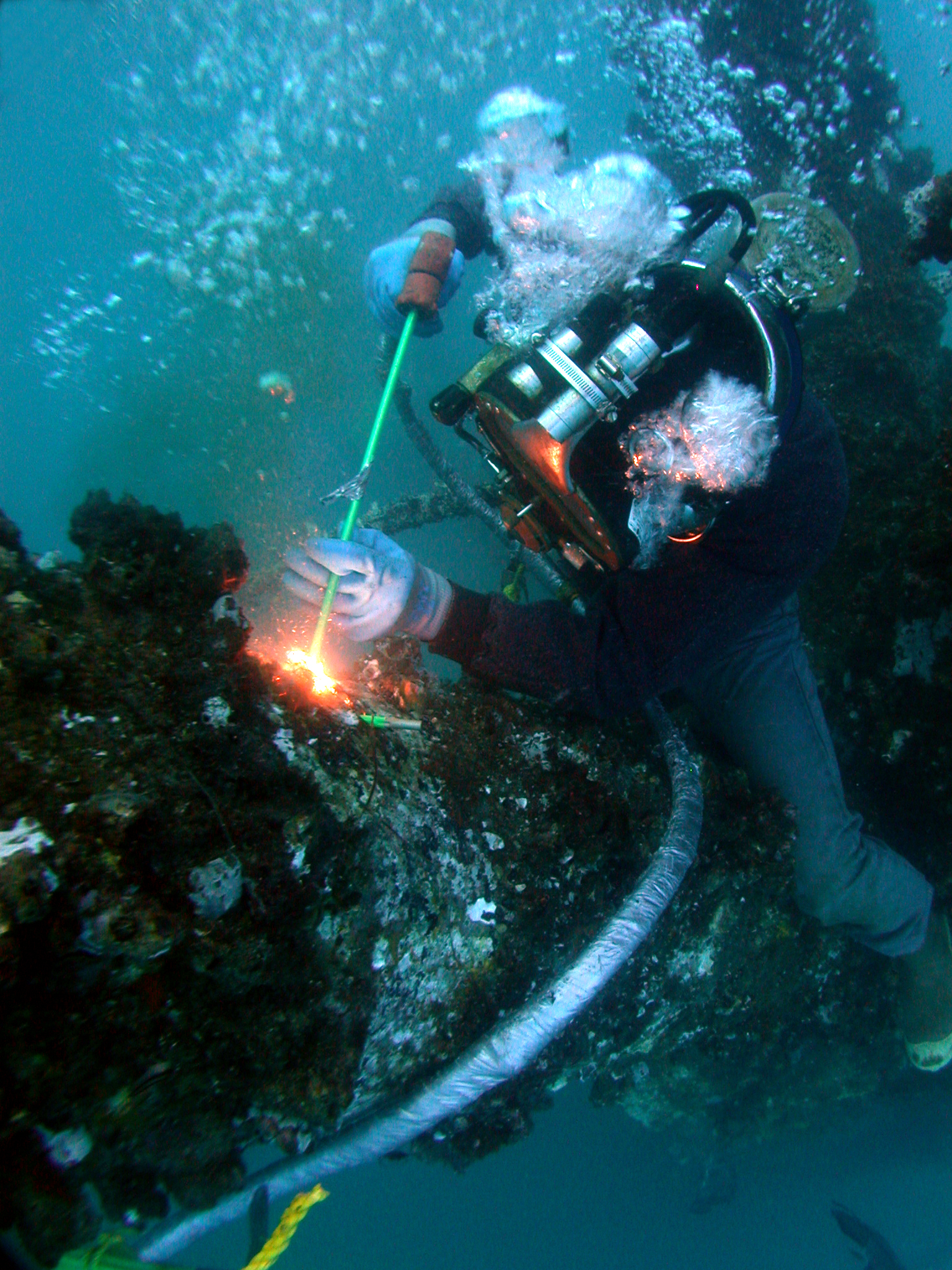

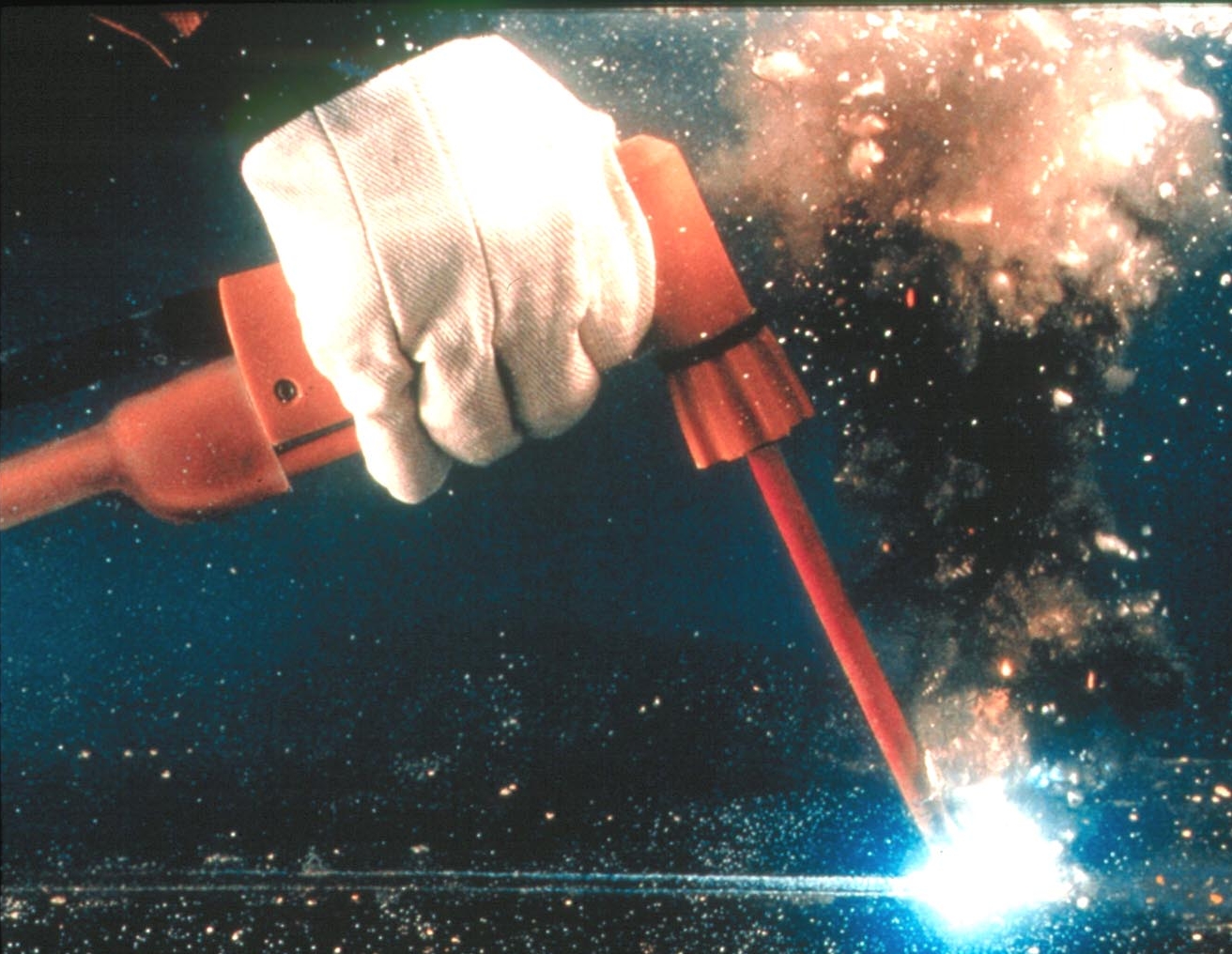

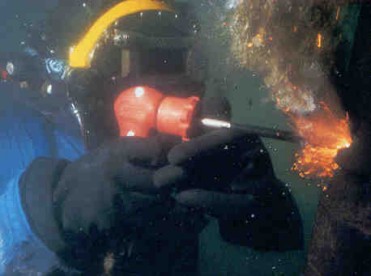

underwater. Torches for cutting, welding, and gouging underwater
Part Number: 42075005
Warranty: 30 Days
| Included Features |
Specially designed exothermic cutting rod,
patented
single piece construction maintains the balance necessary to sustain
the exothermic reaction.
Cutting rods can sustain the burn with and without constant electrical
power once ignited. |
| Applications |
Salvage / Docking facility construction /
Off-shore
drill rig repair |
| Electrode Size |
3/8" x 18" (9.5mm x 45.7cm) |
| Water-proof Coating Color |
Orange |
| Recommended Cutting Torch |
SEA Torch "Combination" Cutting/Welding - Part
No.
14-050-126 |
| Pieces per Carton |
50 pieces |
Arcair
3/8 x 18 SEA-JET Cutting Electrode (3/8 x 18) Exothermic, CTN-50 PCS
 Arcair® comes
out on top
underwater. Torches for cutting, welding, and gouging underwater
Part Number: 42066006
Warranty: 30 Days
| Included Features |
An exothermic cutting electrode that is made up
of a
3-piece construction consisting of an outer steel tube, with an steel
wound spring and a hollow inner tube.
Does not need constant welding current to sustain the cutting action.
|
| Applications |
Salvage / Docking facility construction /
Off-shore
drill rig repair |
| Electrode Size |
3/8" x 18" (9.5mm x 45.7cm) |
| Inside Hole Diameter |
0.125" (3.2mm) |
| Water-proof Coating Color |
Red |
| Recommended Cutting Torch |
SEA Torch "Combination" Cutting/Welding - Part
No.
14-050-126 |
| Pieces per Carton |
50 pieces |
Arcair
(1/8)-(5/32)-(3/16) x 14 SEA-WELD Welding Electrode
 Arcair® comes
out on top
underwater. Torches for cutting, welding, and gouging underwater
Part Number: 42024002
Warranty: 30 Days
| Included Features |
Specially treated and coated for underwater
structural
repairs. |
| Applications |
Salvage / Docking facility construction /
Off-shore
drill rig repair |
Electrode Size
Amperage Capacity
Burn Off Tme (Seconds)
Part
Number |
1/8" x 14"
(3.2mm x 35.6cm) Amperage
Capacity150 - 180 amps
Burn Off Tme (Seconds)40
- 46, Part Number
42024002
5/32"
x 14" (4.0mm x 35.6cm) Amperage
Capacity170 - 210 amps
Burn Off Tme (Seconds)44
- 56, Part Number
42984004
3/16"
x 14" (4.8mm x 35.6cm) Amperage
Capacity190 - 230 amps
Burn Off Tme (Seconds)59
- 66, Part Number
42034007 |
| Waterproof Color |
Yellow |
| Pieces per Carton |
150 pieces |
Arcair
5/16 x 14 SEA-CUT I Cutting Electrode (5/16 x 14) Oxygen-Arc, CTN-50 PCS
 Arcair® comes
out on top
underwater. Torches for cutting, welding, and gouging underwater
Part Number: 42059007
Warranty: 30 Days
| Included Features |
Tubular electrode designed especially for the
oxygen-arc cutting process. They cut fast to reduce expensive
underwater diving time.
A uniform plastic coating is applied on the outer diameter for stable
arc control and abrasive resistance.
They remain usable even after repeated exposure to water or high
humidity. |
| Applications |
Salvage / Docking facility construction /
Off-shore
drill rig repair |
| Electrode Size |
5/16" x 14" (7.9mm x 35.6cm) |
| Inside Hole Diameter |
0.113" (2.9mm) |
| Water-proof Coating Color |
Blue |
| Recommended Cutting Torch |
SEA Torch "Combination" Cutting/Welding - Part
No.
14-050-124 |
| Pieces per Carton |
50 pieces |
Arcair
5/16 x 14 TUFF-COTE Cutting Electrode (5/16 x 14) Oxygen-Arc, Flux
Coated, CTN-50 PCS
 Arcair® comes
out on top
underwater. Torches for cutting, welding, and gouging underwater
Part Number: 42059008
Warranty: 30 Days
| Included Features |
Tubular electrode designed especially for the
oxygen-arc cutting process. They cut fast to reduce expensive
underwater diving time.
A uniform plastic coating is applied over the flux coating on the outer
diameter for stable arc control and abrasive resistance.
They remain usable even after repeated exposure to water or high
humidity. |
| Applications |
Salvage / Docking facility construction /
Off-shore
drill rig repair |
| Electrode Size |
5/16" x 14" (7.9mm x 35.6cm) |
| Inside Hole Diameter |
0.113" (2.9mm) |
| Water-proof Coating Color |
White |
| Recommended Cutting Torch |
SEA Torch "Combination" Cutting/Welding - Part
No.
14-050-124 |
| Pieces per Carton |
50 pieces |
Arcair
5/16 x 9 ARCWATER Gouging Electrode (350-450A, 5/16 x 9) CTN-50 PCS
Arcair® comes
out on top
underwater. Torches for cutting, welding, and gouging underwater
Part Number: 42059006
Warranty: 30 Days
| Included Features |
Similar air carbon-arc electrode used in above
water
applications but with a water-proof coating applied over the outer
diameter.
Used with the ARCWATER Torch Assembly, Part No. 14-050-127 where a high
pressure jet of water is forced out of the torch and pushes away the
molten metal. |
| Applications |
Salvage / Docking facility construction /
Off-shore
drill rig repair |
| Current Type |
D.C. (Direct Current |
| Operating Polarity |
DCEP (Direct Current Electrode Positive) -
Reverse
Polarity |
| Electrode Size |
5/16" x 9" (7.9mm x 22.9cm) |
| Water-Proof Coating Color |
White |
| Amperage Capacity |
350 - 450 amps |
| Pieces per Carton |
50 pieces |
|
ARCAIR
Electrodes underwater cutting,welding & gouging
